Fluxtrol 100

Fluxtrol 100

Frequency (Up to 50 kHz)

Fluxtrol 100 has the highest thermal conductivity, saturation flux density and flexural strength of the Fluxtrol family of materials. Fluxtrol 100 has similar magnetic properties in the favorable direction to Fluxtrol A, but with significantly less anisotrophy both thermally and magnetically. Fluxtrol 100 has good machinability when sharp tools and high spindle speeds are used.

Note: There are many variables involved in an induction process. In order to utilize the fullest potential of our product, you must help narrow down the parameters you are operating with. Each grade of Fluxtrol material has its own distinctive properties that are beneficial to a certain range of electrical and design parameters.

Contact Fluxtrol Inc. to receive more information about which material is right for you.

To buy Fluxtrol 100, fill out the contact form on this page and we will be in touch with you shortly.

Gallery

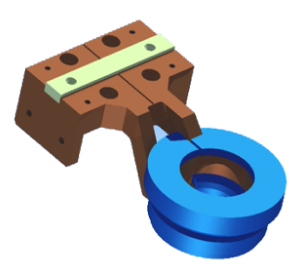

2 Turn O.D.

Hair Pin

I.D. Multi Turn

Pancake

I.D. Single Turn

Split and Return

Transverse Flux

Fluxtrol 100 Properties

Property	Units	Fluxtrol 100
µ_r initial_⟂	None	80
µ_r maximum_⟂	None	132
µ_r initial_∥	None	55
µ_r maximum_∥	None	70
B_s	T	1.6
ρ	Ω m	2
κ_⟂	W/m-K	28
κ_∥	W/m-K	19
CTE_⟂	1/K	1.5 X 10^-5
CTE_∥	1/K	1.4 X 10^-5
C_p	J/g-°C	0.45
Density	g/cm³	6.8
Hardness	D scale	93
Flexural Strength_⟂	MPA	54.5
Flexural Strength_∥	MPA	46.9
Modulus_⟂	Tangent 0.07% – MPA	57,700
Modulus_∥	Tangent 0.07% – MPA	52,400

Fluxtrol 100 Graphs

H (A/m)	B⟂	B∥
200	0.022	0.014
500	0.066	0.039
1000	0.153	0.081
1500	0.243	0.125
2000	0.333	0.171
2500	0.413	0.217
3000	0.489	0.263
3500	0.56	0.307
4000	0.632	0.353
5000	0.731	0.439
6000	0.822	0.52
7000	0.895	0.595
9000	1.009	0.738
12000	1.127	0.905
15000	1.21	1.03
20000	1.311	1.18
25000	1.383	1.283
30000	1.44	1.361

H (A/m)	µ_r⟂	µ_r∥
200	90	56
500	106	62
1000	122	65
1500	130	67
2000	132	68
2500	132	69
3000	130	70
3500	127	70
4000	124	70
5000	117	70
6000	109	69
7000	102	68
9000	89	65
12000	75	60
15000	64	55
20000	52	47
25000	44	41
30000	38	36

Symbol	Description
Pv = aB^2(1-B/b)f + cB²f²
Pv	Power Density (W/cm³)
B	Magnetic Flux Density (T)
f	Frequency (kHz)
a, b, c	Constants
Fluxtrol 100 Constants	Value
a	1.82
b	1.8
c	0.006

Symbol	Description
Pv = aB^2(1-B/b)f + cB²f²
Pv	Power Density (W/cm³)
B	Magnetic Flux Density (T)
f	Frequency (kHz)
a, b, c	Constants
Fluxtrol 100 Constants	Value
a	1.82
b	1.8
c	0.006

Flexure Strain⟂ (mm/mm)	Flexure Stress⟂ (MPA)	Flexure Strain∥ (mm/mm)	Flexure Stress∥ (MPA)
0.00000	0.0	0.00000	0.0
0.00020	4.0	0.00019	0.7
0.00040	11.9	0.00040	8.8
0.00059	22.4	0.00059	18.6
0.00080	34.0	0.00079	29.3
0.00100	43.5	0.00100	38.8
0.00119	50.3	0.00119	45.3
0.00139	54.2	0.00140	44.6
0.00149	54.1	0.00150	38.3
0.00160	51.8	0.00160	33.0
0.00180	39.4	0.00180	25.1
0.00200	25.9	0.00200	20.2

Fluxtrol 100 Stock Sizes

Round Stock Sizes

Rectangle Stock Sizes

Rounds / Billets

Size in Inches		Size in Millimeters
.50 Ø x 2.00	4.50 Ø x 2.00	12.7 Ø x 50.8	114.3 Ø x 50.8
.67 Ø x 2.00	5.00 Ø x .25	17.0 Ø x 50.8	127.0 Ø x 6.3
.75 Ø x 2.00	5.00 Ø x .75	19.0 Ø x 50.8	127.0 Ø x 19.0
1.00 Ø x 2.00	5.00 Ø x 1.00	25.4 Ø x 50.8	127.0 Ø x 25.4
1.25 Ø x 2.00	5.00 Ø x 2.00	31.7 Ø x 50.8	127.0 Ø x 50.8
1.50 Ø x 2.00	5.50 Ø x 1.00	38.1 Ø x 50.8	140.0 Ø x 25.4
1.75 Ø x 2.00	5.50 Ø x 2.00	44.5 Ø x 50.8	140.0 Ø x 50.8
2.00 Ø x 2.00	6.00 Ø x .25	50.8 Ø x 50.8	152.4 Ø x 6.3
2.30 Ø x 2.00	6.00 Ø x .75	58.4 Ø x 50.8	152.4 Ø x 19.0
2.50 Ø x 2.00	6.00 Ø x 1.00	63.5 Ø x 50.8	152.4 Ø x 25.4
2.76 Ø x 2.00	6.00 Ø x 2.00	70.1 Ø x 50.8	152.4 Ø x 50.8
3.00 Ø x 1.00	6.50 Ø x .75	76.2 Ø x 25.4	165.1 Ø x 19.0
3.00 Ø x 1.25	6.50 Ø x 1.00	76.2 Ø x 31.7	165.1 Ø x 25.4
3.00 Ø x 2.00	6.50 Ø x 2.00	76.2 Ø x 50.8	165.1 Ø x 50.8
3.50 Ø x 1.00	8.00 Ø x .25	89.0 Ø x 25.4	203.2 Ø x 6.3
3.50 Ø x 2.00	8.00 Ø x .50	89.0 Ø x 50.8	203.2 Ø x 12.7
4.00 Ø x .75	8.00 Ø x .75	101.5 Ø x 19.0	203.2 Ø x 19.0
4.00 Ø x 1.00	8.00 Ø x 1.00	101.5 Ø x 25.4	203.2 Ø x 25.4
4.00 Ø x 2.00	8.00 Ø x 1.50	101.5 Ø x 50.8	203.2 Ø x 38.1
4.50 Ø x 1.00	8.00 Ø x 2.00	114.3 Ø x 25.4	203.2 Ø x 50.8

Rectangular Blocks

Size in Inches	Size in Millimeters	Size in Inches	Size in Millimeters
.25 x 1.00 x 4.00	6.3 x 25.4 x 101.5	1.25 x 1.25 x 3.00	31.7 x 31.7 x 76.2
.25 x 1.50 x 4.00	6.3 x 38.1 x 101.5	.25 x 3.12 x 8.75	6.3 x 79.2 x 222.2
.50 x .50 x 4.00	12.7 x 12.7 x 101.5	.25 x 4.25 x 6.50	6.3 x 107.9 x 165.0
.50 x .75 x 4.00	12.7 x 19.0 x 101.5	.25 x 6.50 x 8.75	6.3 x 165.0 x 222.2
.50 x 1.00 x 4.00	12.7 x 25.4 x 101.5	.38 x 3.12 x 8.75	9.6 x 79.2 x 222.2
.50 x 1.50 x 4.00	12.7 x 38.1 x 101.5	.38 x 4.25 x 6.50	9.6 x 107.9 x 165.0
.50 x 2.00 x 4.00	12.7 x 50.8 x 101.5	.38 x 6.50 x 8.75	9.6 x 165.0 x 222.2
.63 x .63 x 4.00	16.0 x 16.0 x 101.5	.50 x 3.12 x 8.75	12.7 x 79.2 x 222.2
.63 x .75 x 4.00	16.0 x 19.0 x 101.5	.50 x 4.25 x 6.50	12.7 x 107.9 x 165.0
.63 x 1.00 x 4.00	16.0 x 25.4 x 101.5	.50 x 6.50 x 8.75	12.7 x 165.0 x 222.2
.63 x 2.00 x 4.00	16.0 x 50.8 x 101.5	.63 x 3.12 x 8.75	16.0 x 79.2 x 222.2
.75 x .75 x 4.00	19.0 x 19.0 x 101.5	.63 x 4.25 x 6.50	16.0 x 107.9 x 165.0
.75 x 1.00 x 4.00	19.0 x 25.4 x 101.5	.63 x 6.50 x 8.75	16.0 x 165.0 x 222.2
.75 x 1.50 x 4.00	19.0 x 38.1 x 101.5	.75 x 3.12 x 8.75	19.0 x 79.2 x 222.2
.75 x 2.00 x 4.00	19.0 x 50.8 x 101.5	.75 x 4.25 x 6.50	19.0 x 107.9 x 165.0
1.00 x 1.00 x 2.00	25.4 x 25.4 x 50.8	.75 x 6.50 x 8.75	19.0 x 165.0 x 222.2
1.00 x 1.25 x 4.00	25.4 x 31.7 x 101.5	1.00 x 3.12 x 8.75	25.4 x 107.9 x 222.2
1.00 x 1.50 x 3.00	25.4 x 38.1 x 76.2	1.00 x 4.25 x 6.50	25.4 x 107.9 x 165.0
1.00 x 1.50 x 4.00	25.4 x 38.1 x 101.5	1.00 x 6.50 x 8.75	25.4 x 165.0 x 222.2
1.00 x 2.00 x 4.00	25.4 x 50.8 x 101.5
